penta needle

QUINTUM NeedleTM is

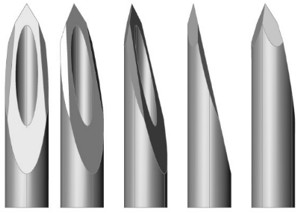

- the most sophisticated cannula with a unique 5-Bevel design
- a needle that combines the benefits of the 5-Bevel design plus the back bevel cut
- advantages during assembly process by minimizing the risk of protective shield perforation
- a cannula with a very sharp and stable tip

This 5-bevel design combines a patient-friendly, LPF (Low Penetration Force) tip with a solid back-bevel cutting edge. It permits automatic assembling without the risk of penetrating the rubber shield of the needle. Its exceptional geometry in combination with the special anti-coring treatment creates a very flat penetration curve. The sensation of pain is minimized and guarantees high user- and patient comfort.

We can offer you a needle length of only 8 mm for this type.

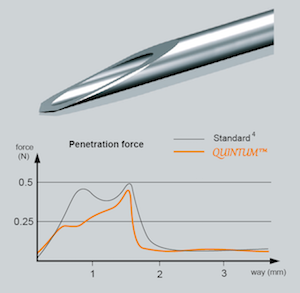

penet force
